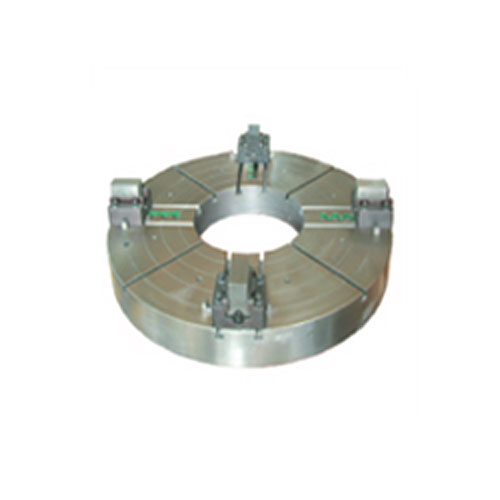

產品：K78
產品特性:
■特點：
☆單動可調，適用各種形狀工件的加工。
☆卸掉卡爪，可單獨作花盤使用。
☆廣泛用于大型立車。
■Specificity:
☆I(lǐng)ndependent and adjustment suitable for processing all kinds of special-shaped workpieces.
☆Unloading Jaws can be used as face plate.
☆I(lǐng)t is widely used in standing machines.
產品詳情

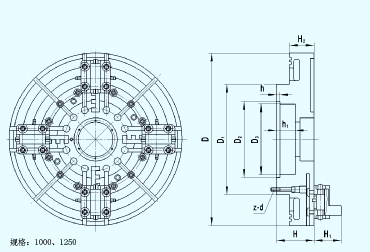

■尺寸、性能參數 Dimension、Characteristic Parameters
|
規格D
Size
|
D
|
D1
|
D2
|
D3
|
H
|
H1
|
H2
|
h
|
h1
|
z-d
|
|
1000
|
1000
|
640
|
440
|
410
|
223
|
158
|
148
|
19.5
|
108
|
12-M20
|
|
1250
|
1250
|
820
|
440
|
410
|
223
|
158
|
148
|
19.5
|
108
|
12-M20
|
■尺寸、性能參數 Dimension、Characteristic Parameters
|
規格D
Size
|
D
|
D1
|
D2
|
D3
|
H
|
H1
|
H2
|
L
|
z-d
|
|
2000
|
2012
|
630
|
1200
|
300
|
425
|
220
|
80
|
250
|
8-M24
|
|
